380V Horizontal Die Cast Auto Cable Machine For 3.5mm Steel Wire Rope

380V Horizontal Die Cast Auto Cable Machine For 3.5mm Steel Wire Rope
380V Horizontal Die Cast Auto Cable Machine For 3.5mm Steel Wire Rope 380V Horizontal Die Cast Auto Cable Machine For 3.5mm Steel Wire Rope

Large Image :  380V Horizontal Die Cast Auto Cable Machine For 3.5mm Steel Wire Rope

Product Details:
Place of Origin: China
Brand Name: Litron
Certification: ISO9001
Payment & Shipping Terms:
Price: To be negotiated
Delivery Time: 35-45 Working Days
Payment Terms: T/T
Supply Ability: 10 Set/Sets per Year

380V Horizontal Die Cast Auto Cable Machine For 3.5mm Steel Wire Rope

Description
Voltage: 380V±5% Frequency: 50±5 Hz
Electronic Control Unit: PID Bi-directional Controllable Temperature Controller,Contactor, Circuit Breaker,TRIAC Fastest Speed Of Die Cast: 20/min
Tool Box: Screwdriver, Pliers. Pumps,pipe 2pcs Port: Shanghai/ Guangzhou
High Light:

380V Die Cast Auto Cable Machine

,

Horizontal Auto Cable Machine

,

3.5mm Steel Wire Die Cast Machine

Horizontal Die Cast Machine For Die Casting IW Ф1-Ф3.5mm Steel Wire Rope

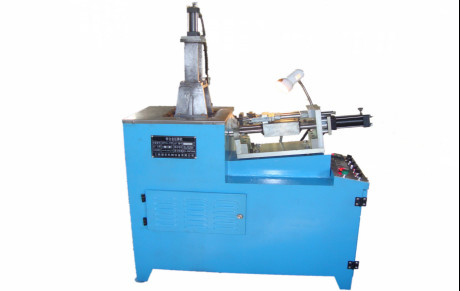

380V Horizontal Die Cast Auto Cable Machine For 3.5mm Steel Wire Rope 0

This machine mainly consists of the following eight parts:

1 Melting system: 4KW electrical heated tube ,heat crucible to 420℃

2 Hydralic system: 2P Taiwan vane pump, oil flow plate, magnetic valve

3 Mold:Adopt the original Taiwan mold size, whole series of die-casting machine is available

4 Frame parts: adopt 45# steel plate ,cut by CNC and welded together. high temperature setting,painting, good shaping and stain resistance.

5 Electronic control unit: PID bi-directional controllable temperature controller,Contactor, circuit breaker,TRIAC

6 Coling system: Coling pump,pipe,connector,cooling housing, work on die cast mold

This machine is used for die casting of IW ф1-ф3.5mm. Main features are Stable,reliable ,high precision and fast.Use 45# steel , Precison Machining,Shape material cut by CNC machine.Good appearance, strong and durable.Main guide pillar using 40 cr steel after heat treatment of the surface chromium plating. Hydraulic pump adopt Taiwan CML vane pump,low noise,the advantages of long life and not hot.Heating by electric heat pipe into the pot .Heating system with bi-directional controllable temperature controller to adjust temperature with advanced PID way.small temperature difference,good insulation,long life.This equipment is widely used in transportation, aviation, medical and other industries control cables.
Comment:
We can customerize the product to meet your need.
380V Horizontal Die Cast Auto Cable Machine For 3.5mm Steel Wire Rope 1

Company Profile

                                               Company Profile

380V Horizontal Die Cast Auto Cable Machine For 3.5mm Steel Wire Rope 2

      Chongqing Xiang Rui Jie machinery equipment Co., Ltd is a non-standard equipment manufacturer integrating design ,development ,manufacturing and sales.

      Company was founded on 20th May ,2013. After serveral years of development ,taking the lead in auto producing industry ,instrument and meter,household appliances ,electronic logistics and another  industries. At present  the products  developed by our company are : auto window regulator assembly line, automatic wiper assembly ,auto shift cable assembly line , auto cable parts and auto parts automation assemly line etc :conveyor line and opening machine, cleaning machine and other auxiliary  equipment ; Assembly equipment  and assembly line of electronic industrial products; Equipment  and assembly line of instrument and instrument industrial products;The development and manufacture of assembly machine ,jig, mould and inspection tools of other industrial.



                                                                       CERTIFICATION





Packaging & Shipping

380V Horizontal Die Cast Auto Cable Machine For 3.5mm Steel Wire Rope 4

Our Services

1. OEM Manufacturing welcome : Product ,Package

2. Sample Order

3. We will reply you for you inquiry in 24 hours .

4. After sending , we will track the products for you once every two days , until you get the products . When you

got the goods , test them, and give us feedback . If you have any question about the problem , contact with us

, we wil help you solve the problem .
